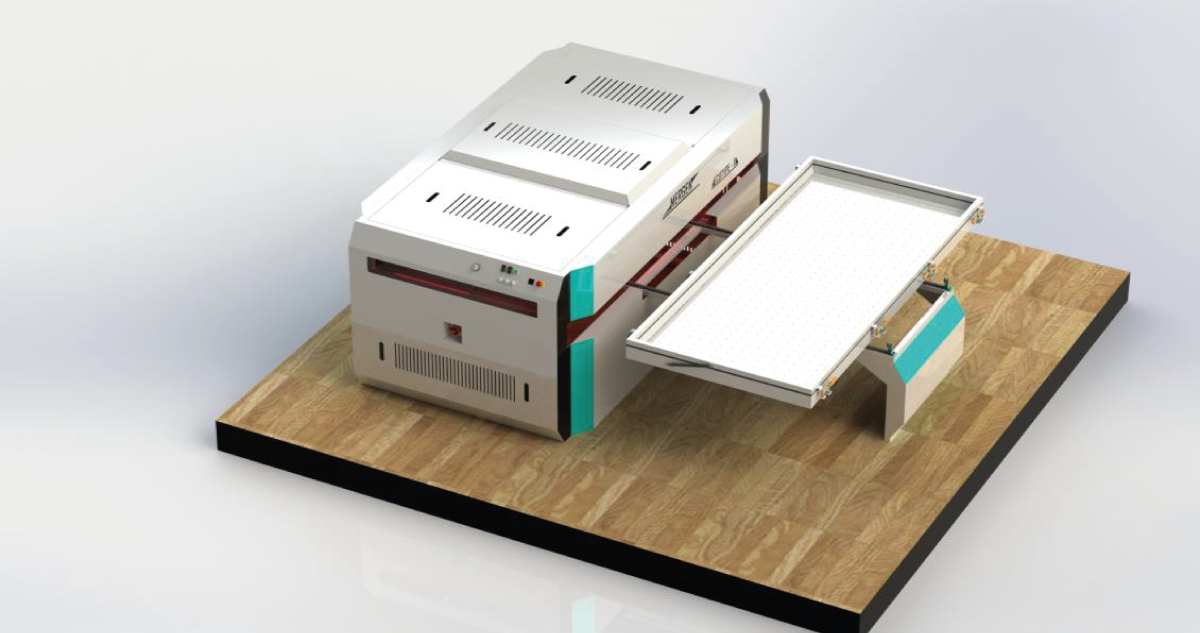

ECOTYPE I
Technical Specifications
| TABLE DIMENSIONS : 1400X3000 (D:45) |
| TABLE MATERIAL : SHEEL METAL |
| VACUUM PUMP : 111 m3 /Hour OILED TYPE – VPS |
| VACUUM ON/OFF SYSTEM : 1’’ ACTUATOR VANE |
| OPERATOR CONTROL : MANUEL TYPE |
| FAULT WARNING : VISUAL AND AUDIBLE |
| TEMPERATURE MEASUREMENT SYSTEM : INFRARED HEAT SENSOR |
| RESISTANCES : 620mm 190V 600W |
| TABLE SYSTEM : MANUEL PRES ARMS |
| SUPPORTS : MANUEL MOVABLE SUPPORTS |
| TABLE MOVEMENT : MANUEL |
Machine Information
| INSTALLATION DIMENSIONS : W/1750 L/7500 H/1750 |
| PACKAGE DIMENSIONS : W/2300 L/3200 H/2500 |
| ENERGY CONSUMPTION : 30 kW |
| AIR REQUIREMENTS : 7 Bar |
| WEIGTH : 1600 Kg |
Advantages
- Easy to Use
- Compact Design, Small Footprint
- Low Risk of Failure
- Optional 2nd Table Addition Feature
- Oil Type Vacuum Pump
Scope Of Applıcatıon
Pvc printing, PP printing, Thermoforming printing
Product Description
Product Images
