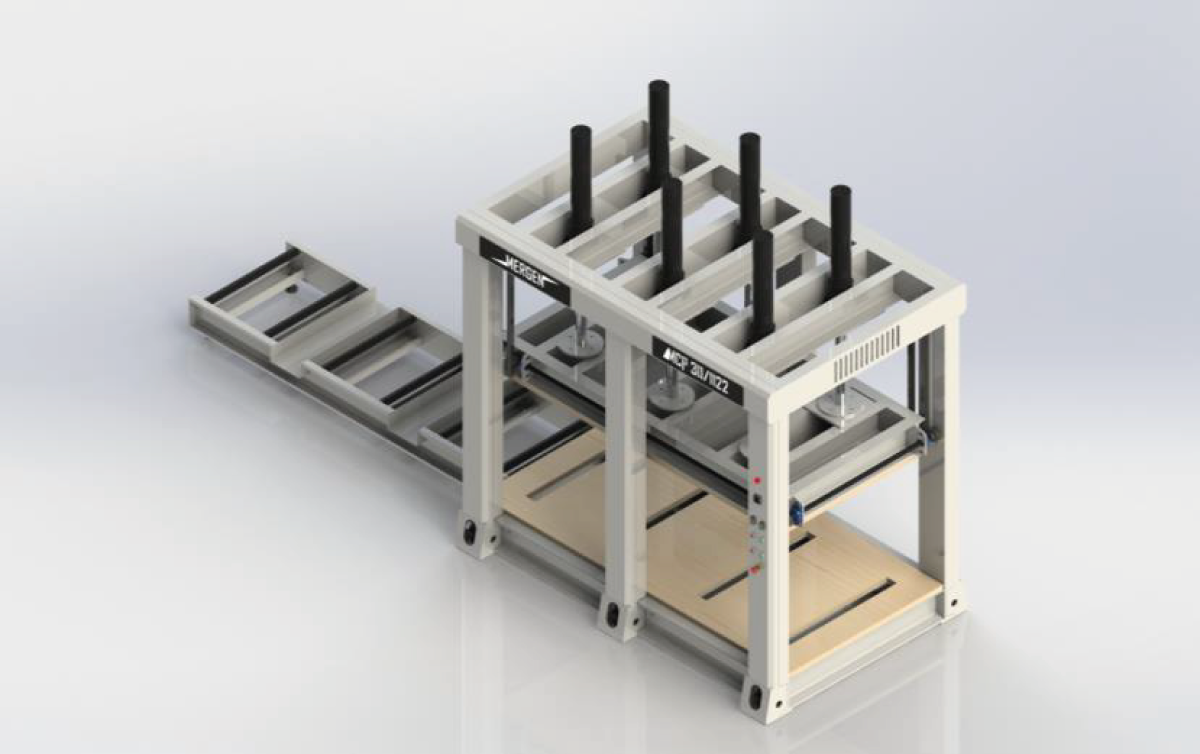

MCP 30.AUTO
Technical Specifications
| TABLE DIMENSIONS = 1100 X 2200 |
| TABLE MATERIAL = SHEEL METAL + MDF |
| RACK&PINION SYSTEM = 30X30XMOD3 STANDART RACK&PINION – 8 POINT |
| HYDRAULIC PUMP = 20 CC |
| CYLINDERS = 125 X 600 MM |
| PRESSURE = 12.5 TON X 6 ADET |
| FAULT WARNING = VISUAL AND AUDIBLE |
| PLC & ELECTRONICAL SYSTEMS = MITSUBISHI |
| LOADING CONVEYOR |
| INSIDE LIFT ROLLERS |
Machine Information
| INSTALLATION DIMENSIONS = W/1500 L/2500 H/2500 |
| PACKAGE DIMENSIONS = W/1500 L/2500 H/2500 |
| ENERGY CONSUMPTION = 7.5 KW |
| AIR REQUIREMENTS = 7 BAR |
| WEIGTH = 3000 KG |
Product Description
Product Images
