MPL.II.AUTO
Technical Specifications
| TABLE DIMENSIONS : 1400X3100 (D:65) / 1400X2400 (D:65) |
| TABLE MATERIAL : SHEEL METAL |
| RACK&PINION SYSTEM : 20X20XMOD2 STANDARD RACK&PINION |
| VACUUM PUMP : 111 m3 /Hour OILED TYPE - VPS |
| VACUUM ON/OFF SYSTEM : 1’’ ACTUATOR VANE |
| MOVEMENT : 0.37 kW 1400 RPM R:1/10 S:40 |

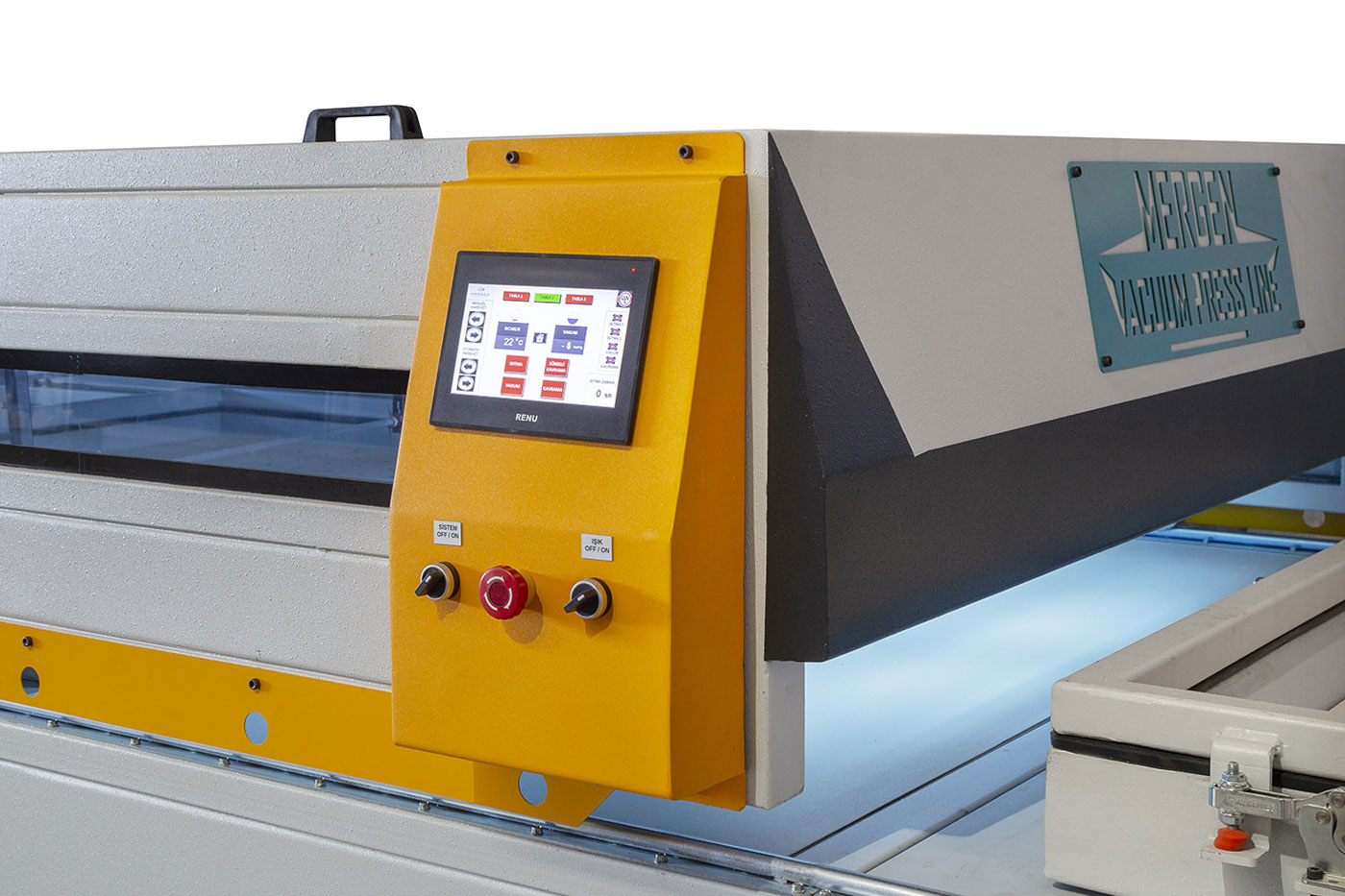

| OPERATOR CONTROL : DELTA 7’’ TOUCH PANEL |

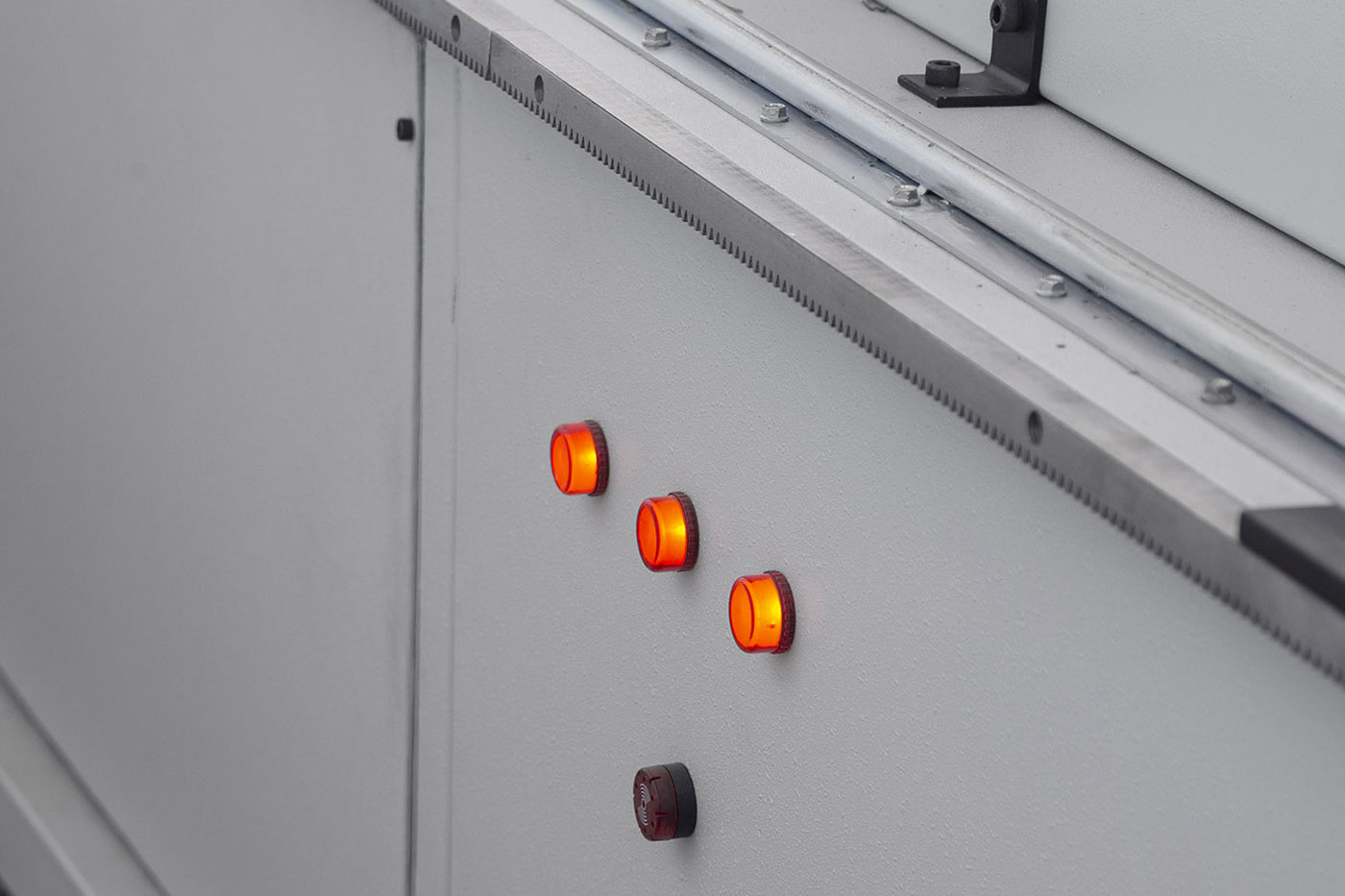

| FAULT WARNING : VISUAL AND AUDIBLE |
| TEMPERATURE MEASUREMENT SYSTEM : INFRARED HEAT SENSOR |
| REZISTANCES : 620mm 190V 600W |
| TABLE SYSTEM : STANDARD MANUEL SYSTEM |

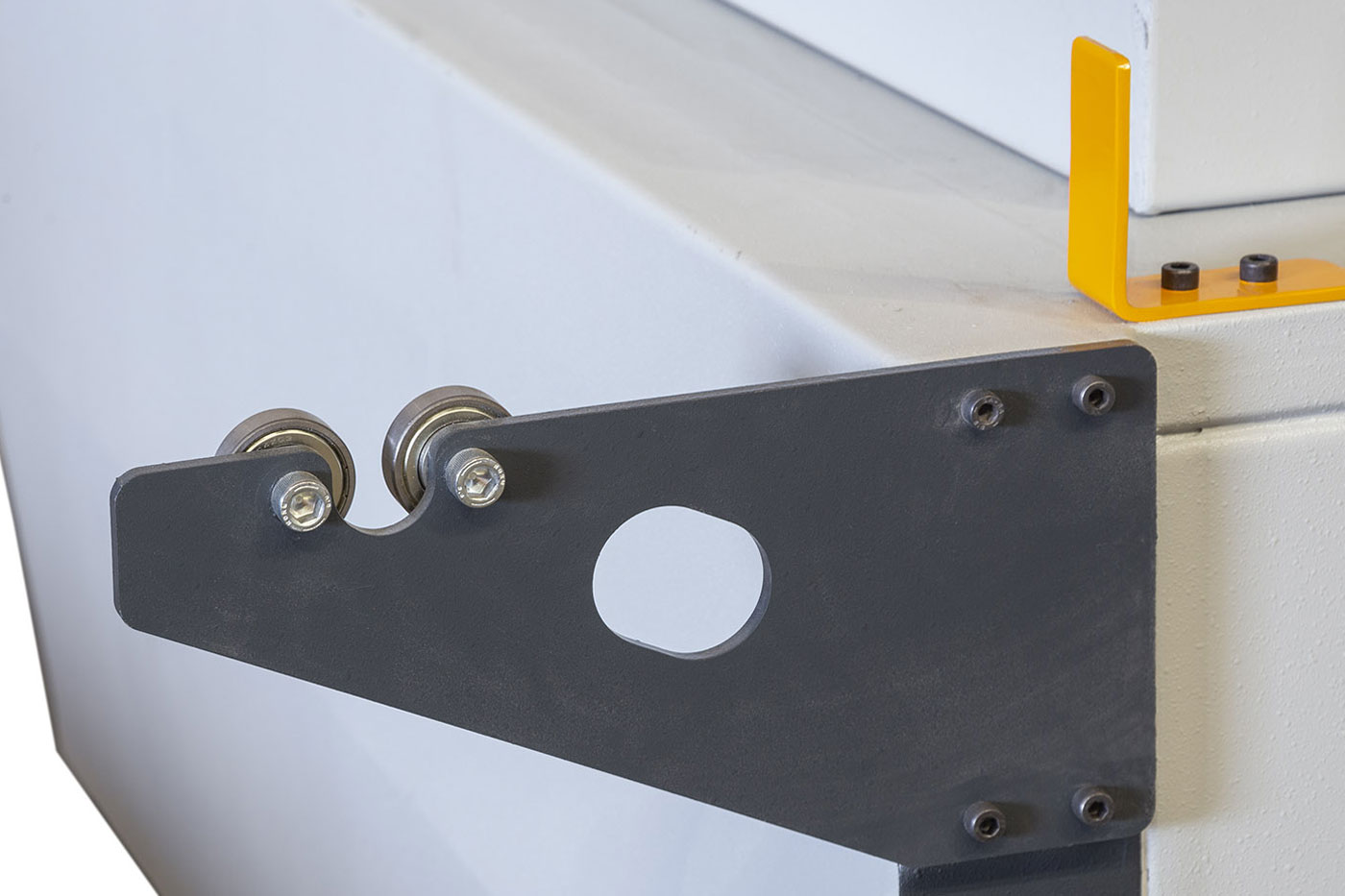

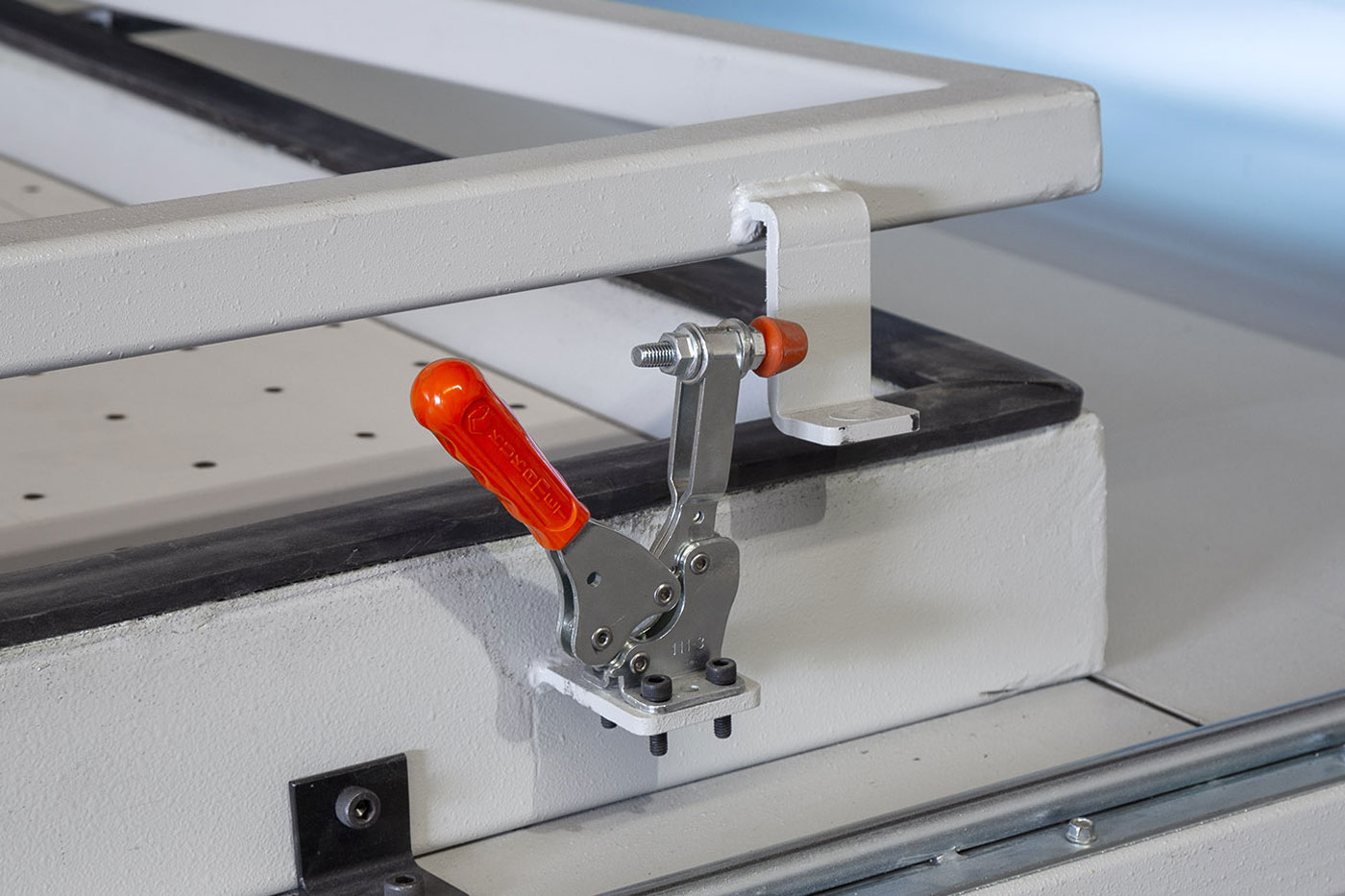

| SUPPORTS : MANUEL MOVABLE SUPPORTS |
| PLC & ELECTRONICAL SYSTEMS : DELTA |
Machine Information
| INSTALLATION DIMENSIONS : W/1750 L/9500 H/1750 |
| PACKAGE DIMENSIONS : W/2300 L/3200 H/2500 |
| ENERGY CONSUMPTION : 30 kW |
| AIR REQUIREMENTS : 7 Bar |
| WEIGTH : 2000 Kg |
Advantages
- PLC Module and Prescription Use
- Fast Production with Automatic Table
- Failure Control System
- Oil Type Vacuum Pump
- Optional Cooling Fan
Characterıstıcs

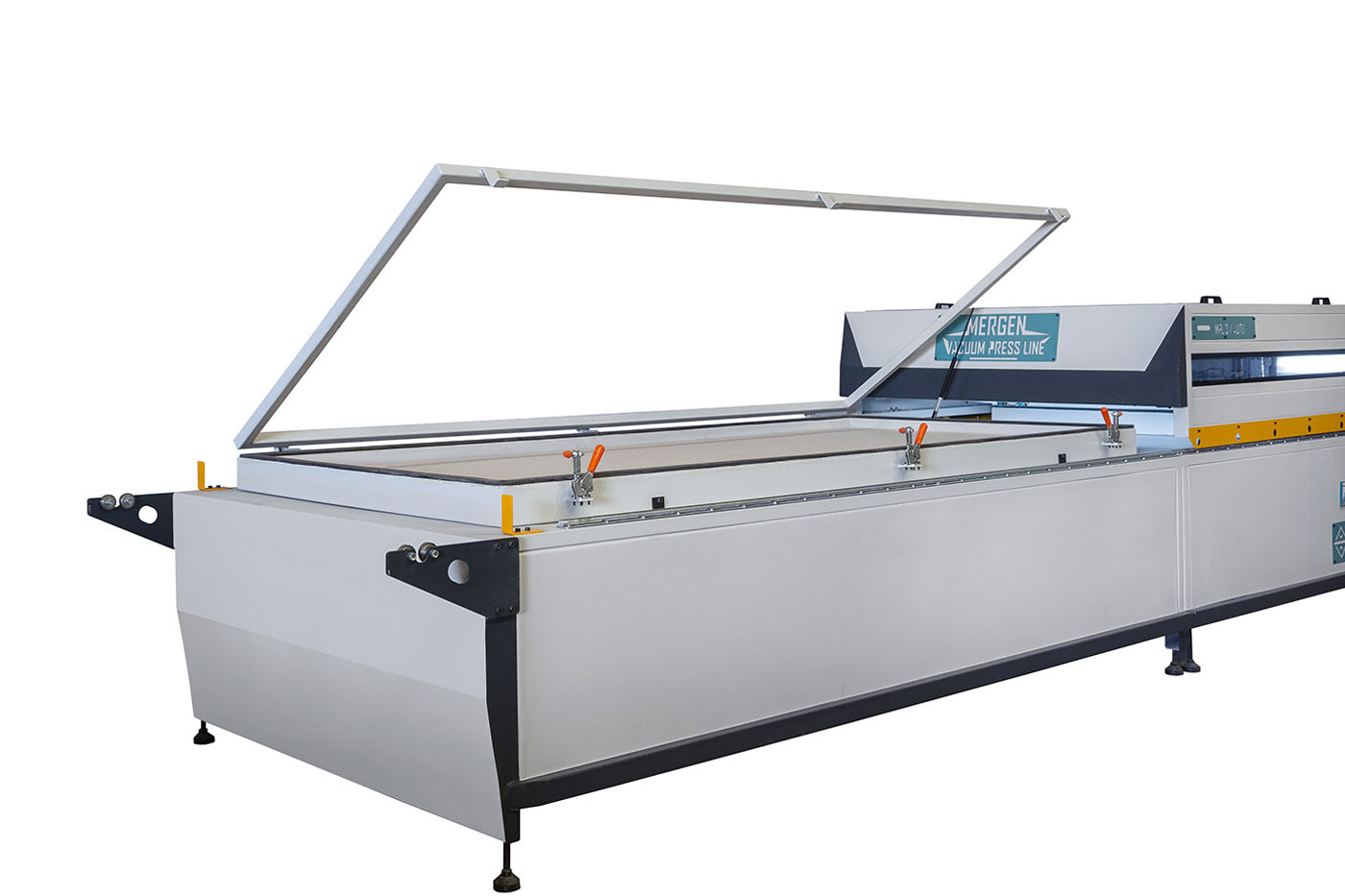

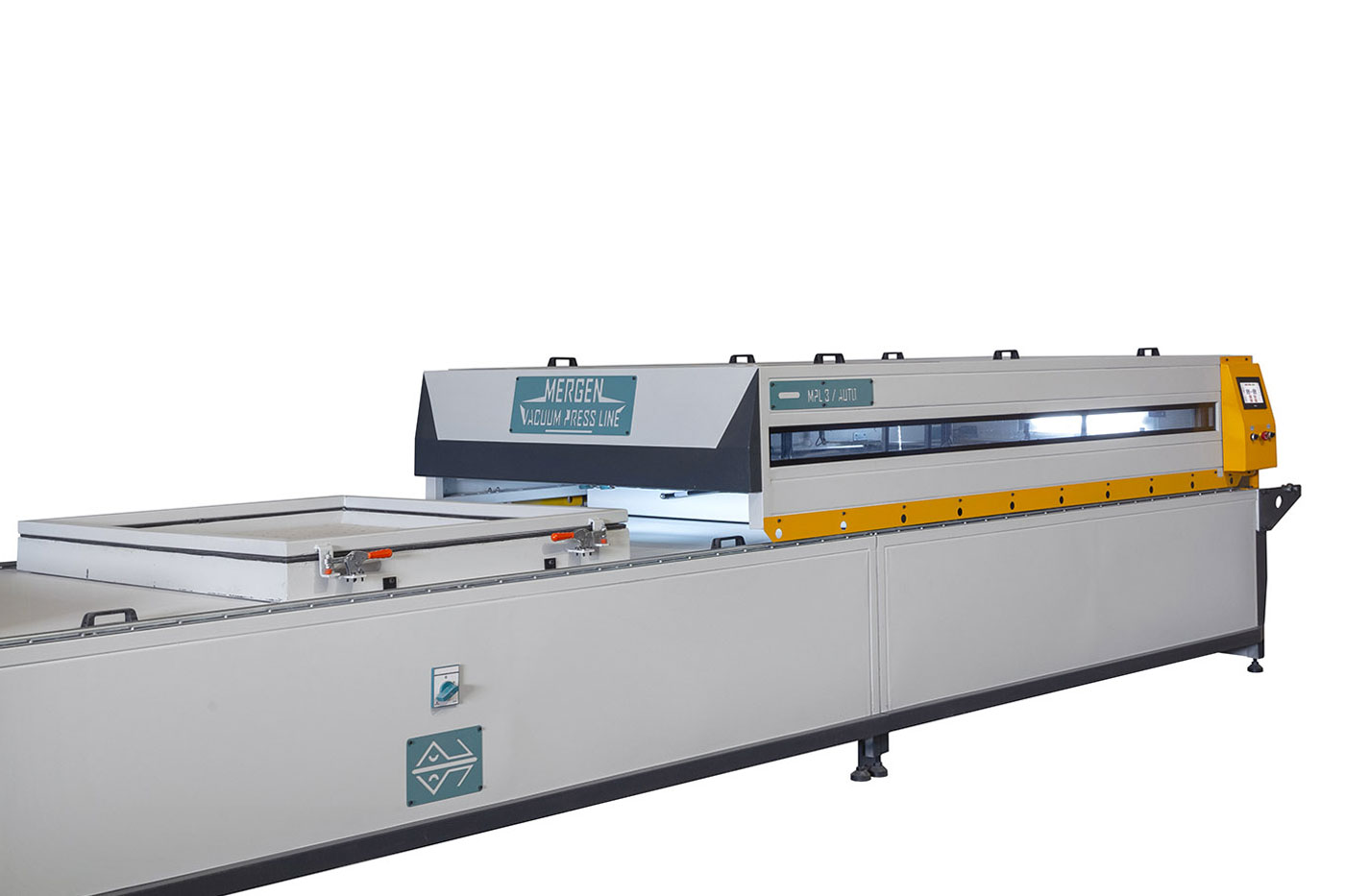

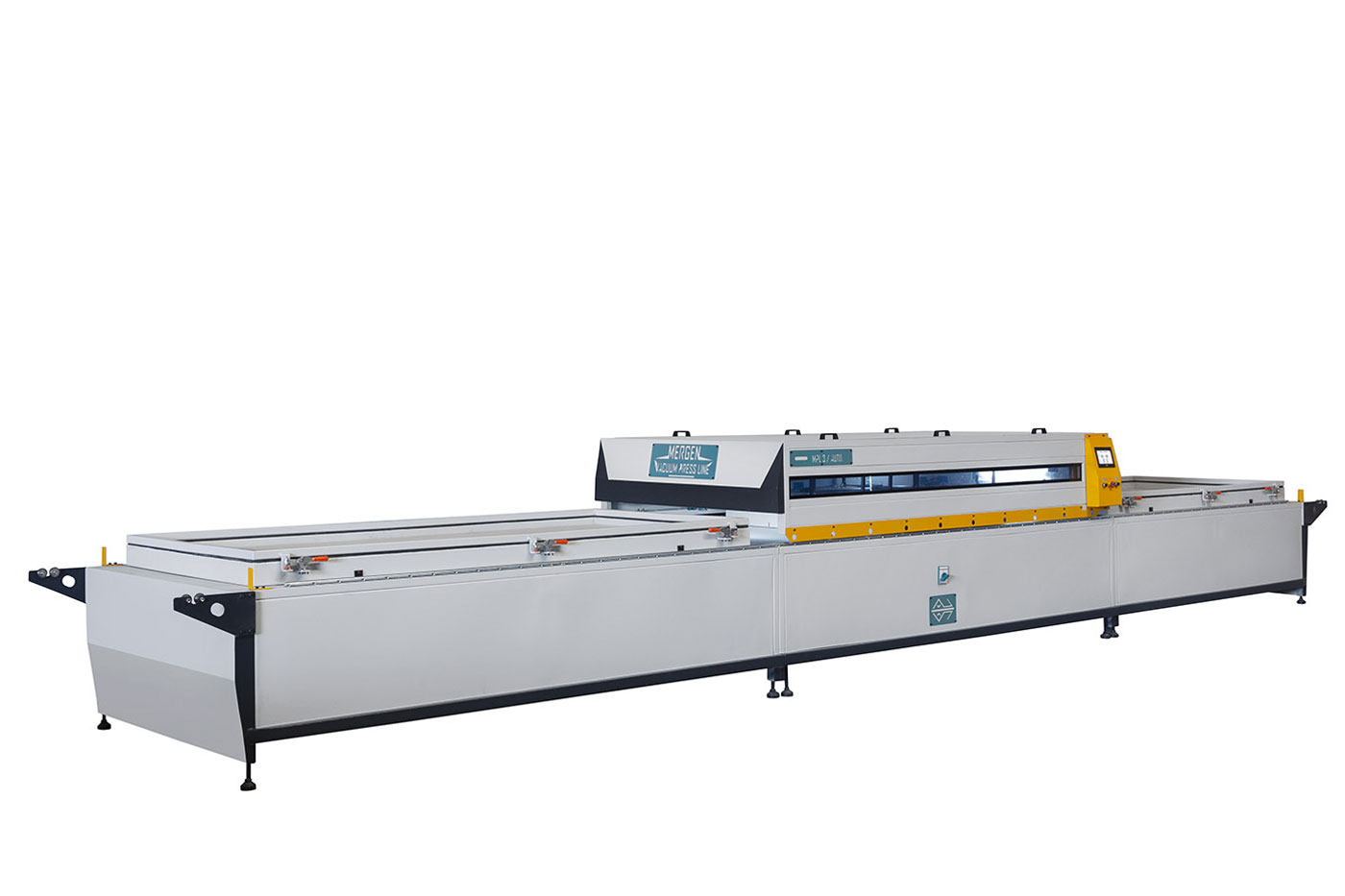

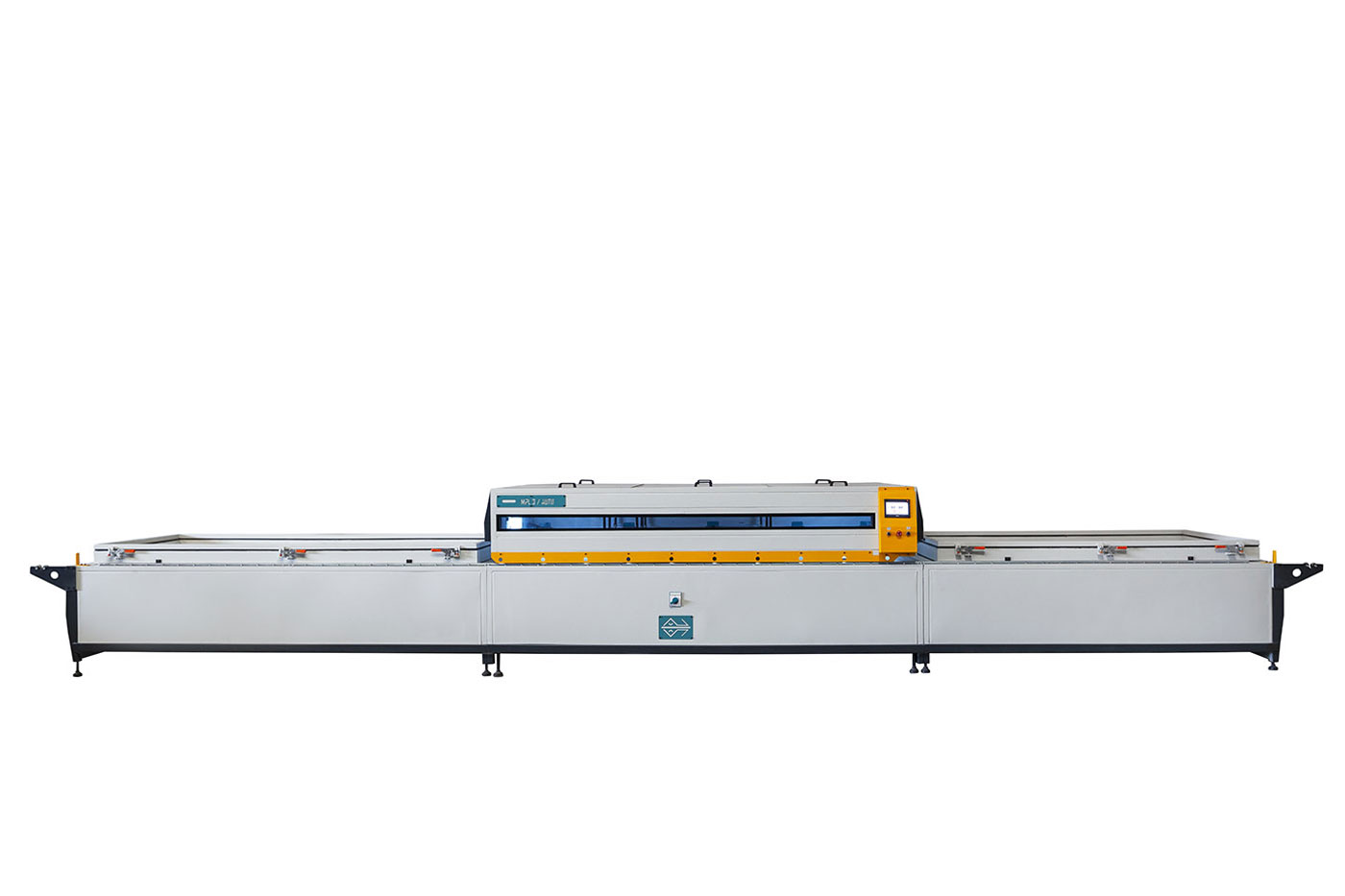

MPL series is a high capacity Vacuum Press solution produced by Mergen.
Scope Of Applıcatıon
Pvc printing, PP printing, Thermoforming printing
